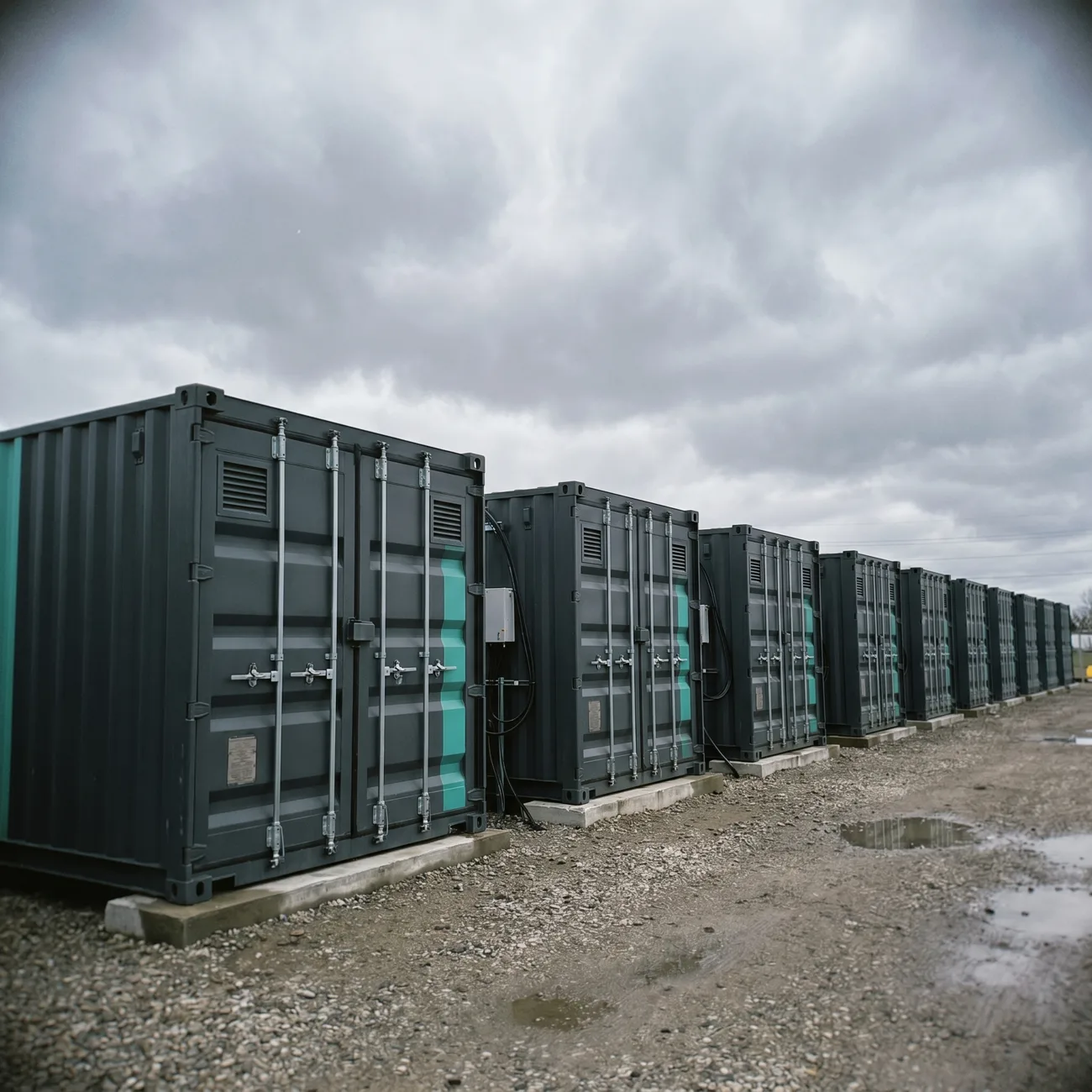

Containerized liquid cooling battery system EnerC+.
Future-proof technology for grid-scale stability.
High-density, modular 1500V storage.
Our containerized solutions are engineered for high-performance thermal management and long-term reliability. This high-density, modular 1500V energy storage system delivers up to 4.07 MWh in a standard 20-foot container, achieving a 50% space saving and reduced installation costs through its prefabricated, liquid-cooled design. Engineered for a 20-year service life, it features IP55 outdoor protection, C5 corrosion resistance, and stable LFP cells compatible with CATL technology for up to 12,000 cycles. Safety is prioritized via a dedicated fire suppression system, optional explosion-proof fans, and full compliance with UL 9540A and IEC 62619 standards.
Certified to
Basic parameters.
| Parameter | Value |
|---|---|
| Basic parameters | |
| Module configuration | 5P*2P52S*8 |
| Cell capacity | 280 Ah / 280 Ah |
| Rated voltage | 1331.2 V |
| Rated energy | 3.72 MWh / 4.07 MWh |
| Product weight | 35 T / 36 T |
| IP level | IP55 |
| Dimension (L×W×H) | 6058 × 2438 × 2896 mm |
Safety, life and integration.
-
Safety measurements
Stable LFP batteries. IP55 outdoor protection. C5 corrosion resistance for 20-year reliability. Fire protection system. Explosion-proof fan option.
-
Long service life
Compatible with CATL technology for up to 12,000 cycles. Liquid cooling with a 5°C cell-to-cell difference.
-
High integration
Modular 1500V system. Separate electrical and battery rooms. 50% space saving. Optional DCDC for cluster management. Prefabricated, reducing installation costs and time.
