DC Charging Systems.

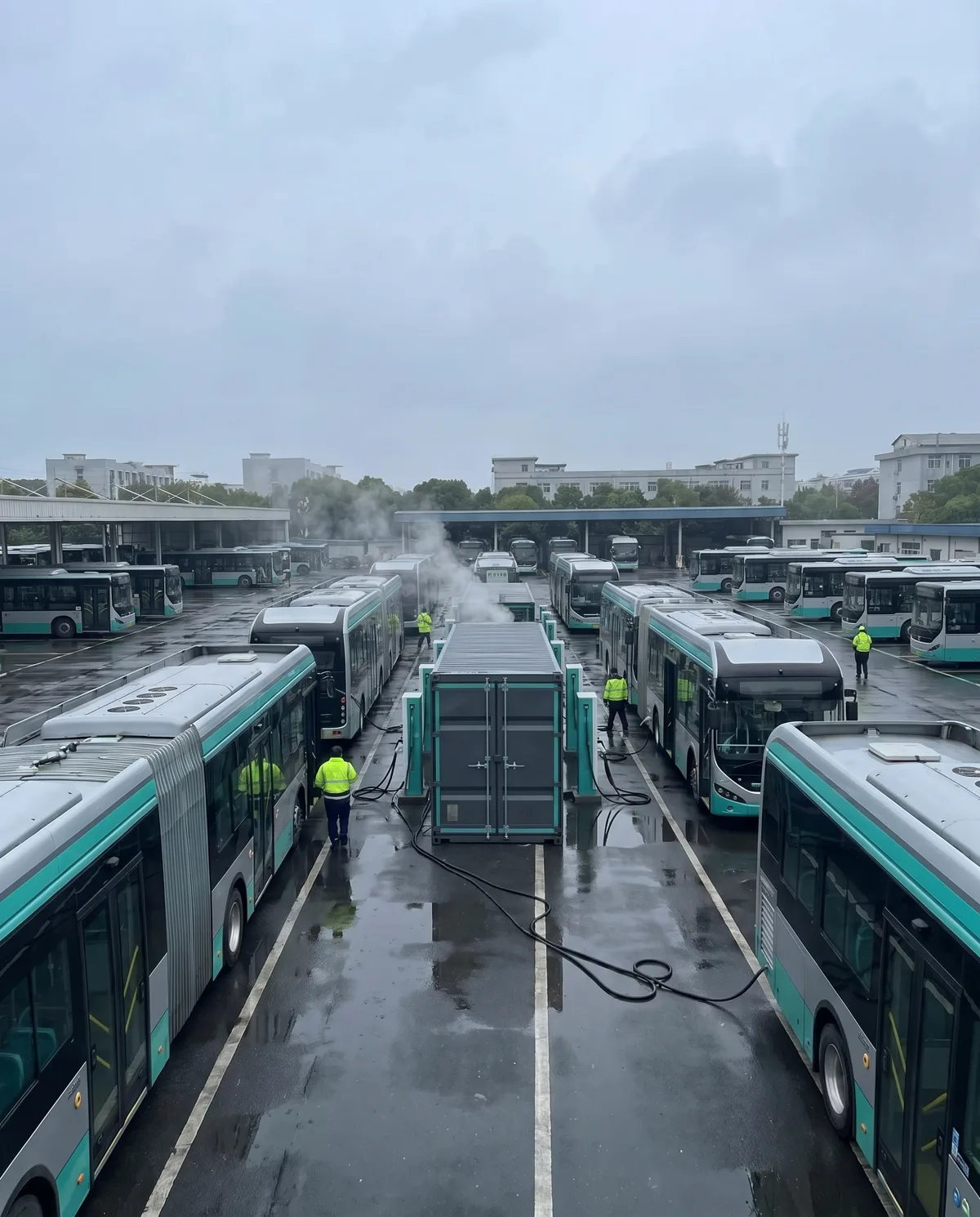

Massive-scale infrastructure for European depots. These centralised charging matrices, from a scalable 360 kW setup to a 2-megawatt containerised solution, use smart dynamic capacity distribution to manage dozens of heavy-duty vehicles simultaneously without maxing out the local grid.

Matrix 360/6

Scalable depot charging for up to six vehicles, the affordable starting point that centralises power to serve multiple bays without maxing out the grid.

Power: 360 kW per base unit, linkable to 1,080 kW
Max output current: 500 A
Output voltage range: 150–1000 Vdc (800 V-ready)
Supply voltage: 400 Vac
Max input current: 533 A
Charging standard: IEC 61851-1 / -23
Charging points: 2 to 6 terminals
Per-terminal: 300 kW CCS High Speed
Connectors: CCS2 · CCS High Speed · GB/T
Interface: 7–12" touchscreen · RFID
Communication: 4G · Ethernet
Smart control: OCPP 1.6J dynamic distribution
Operating temp: −20 °C to +50 °C
Protection: IP54
Dimensions (W×D×H): 1000 × 800 × 2100 mm
Weight: 650 kg

Matrix 720/12

Expanded dynamic power for medium-to-large fleets, dual power units double the network footprint for growing municipal and commercial operations.

Power: 720 kW (2 × 360 units), upgradable to 1,080 kW
Max output current: 1000 A
Output voltage range: 150–1000 Vdc (800 V-ready)
Supply voltage: 400 Vac
Max input current: 1066 A
Charging standard: IEC 61851-1 / -23
Charging points: 4 to 12 terminals
Per-terminal: 300 kW CCS High Speed
Connectors: CCS2 · CCS High Speed · GB/T
Interface: 7–12" touchscreen · RFID
Communication: 4G · Ethernet
Smart control: OCPP 1.6J dynamic distribution
Operating temp: −20 °C to +50 °C
Protection: IP54
Dimensions (W×D×H): 1000 × 800 × 2100 mm per unit
Weight: 650 kg per unit

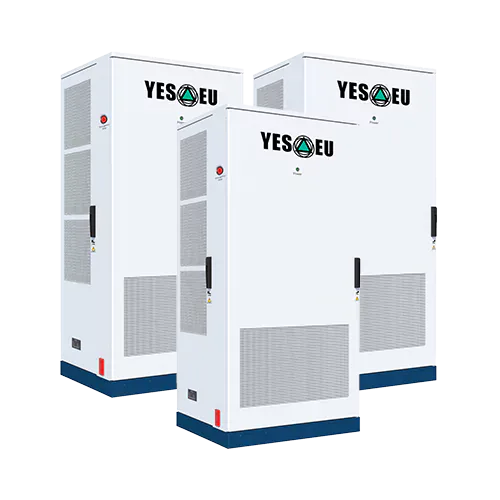

Matrix 1080/18

Matrix configuration for busy commercial transit, advanced dynamic capacity distribution balances maximum power across up to 18 points by real-time demand.

Power: 1,080 kW total
Max output current: 1500 A
Output voltage range: 150–1000 Vdc (800 V-ready)
Supply voltage: 400 Vac
Max input current: 1600 A
Charging standard: IEC 61851-1 / -23
Charging points: 6 to 18 terminals
Per-terminal: 300 kW CCS High Speed
Connectors: CCS2 · CCS High Speed · GB/T
Routing: Smart dynamic distribution
Interface: 7–12" touchscreen · RFID
Communication: 4G · Ethernet
Smart control: OCPP 1.6J
Operating temp: −20 °C to +50 °C
Protection: IP54
Dimensions (W×D×H): 1000 × 800 × 2100 mm per unit
Weight: 650 kg per unit

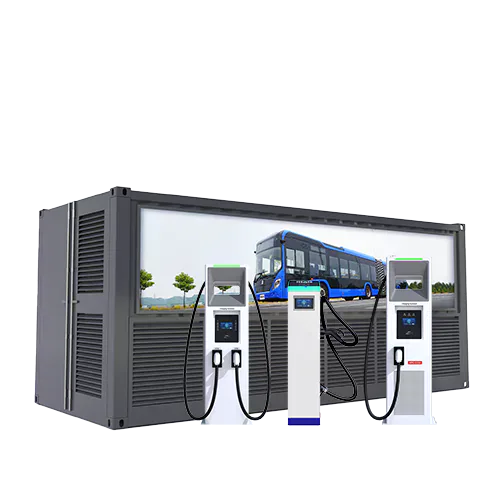

2160/36 · Containerised

Megawatt power for the largest transit authorities in Europe. Housed in a heavy-duty container, the definitive solution for powering large numbers of electric buses simultaneously.

Power: 1,080–2,160 kW (containerised)
Max output current: 500 A
Output voltage range: 200–1000 Vdc
Supply voltage: 400 Vac
Max input current: 3000 A
Charging standard: IEC 61851-1 / -23
Charging points: Up to 48 simultaneous
Connectors: CCS2 · CCS High Speed · GB/T
Interface: 7–12" touchscreen · RFID
Communication: 4G · Ethernet
Smart control: OCPP 1.6J centralised management
Operating temp: −30 °C to +50 °C
Protection: IP54
Dimensions (W×D×H): 5900 × 2350 × 2390 mm (container)
Weight: 6,000 kg
Use: Largest transit-depot fleets
