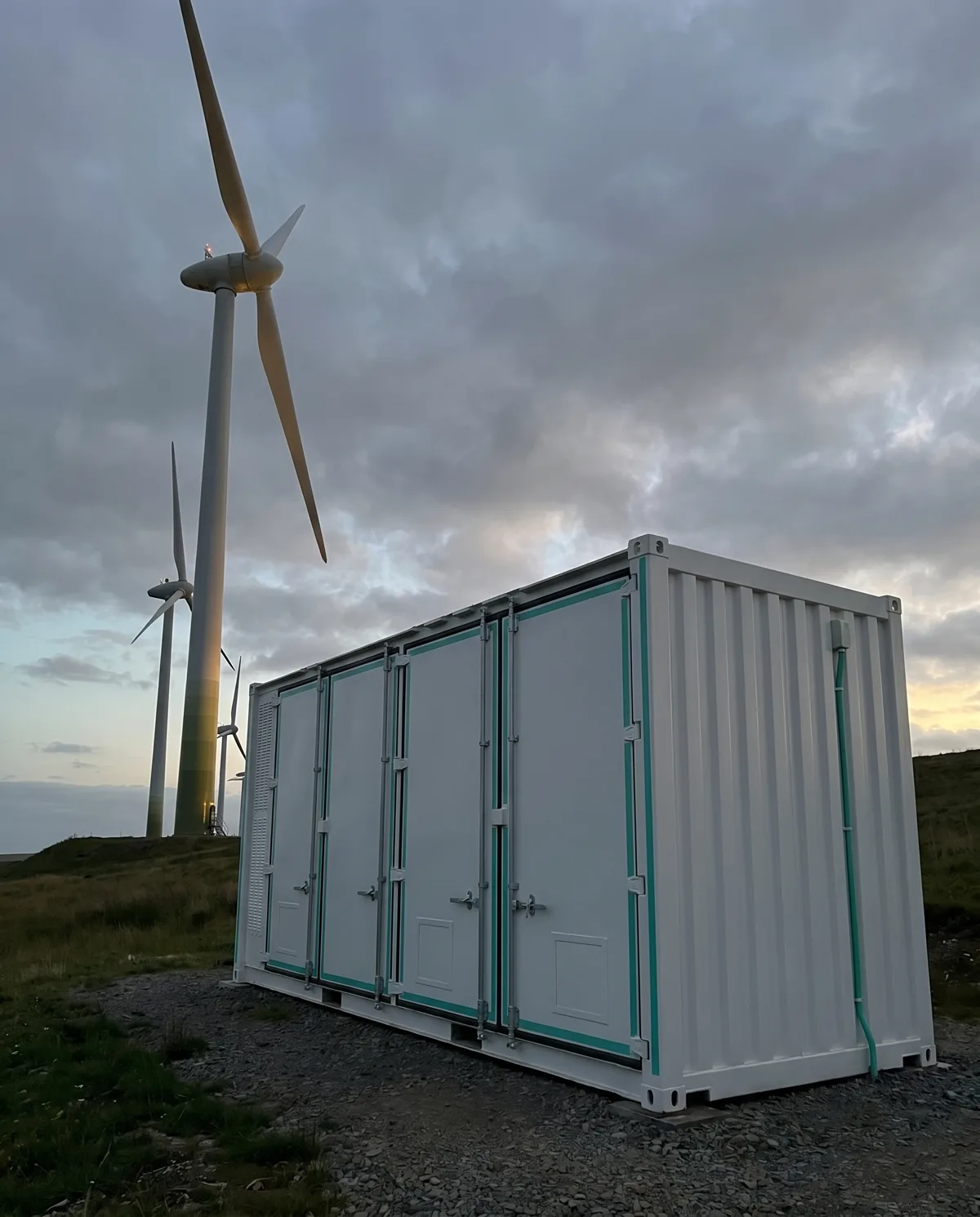

Containerized liquid cooling battery system EnerX.
50% more energy density. 38% less land.
High-capacity storage in a smaller footprint.
This high-capacity storage solution is engineered to maximize project ROI by delivering 50% more energy density in a significantly smaller footprint, reducing land requirements by 38%. Designed for rapid deployment and simplified operations, it features one-click commissioning and enhanced SOC precision to slash manpower costs and improve grid-dispatch accuracy. With a focus on long-term bankability, the system maintains a high 96% efficiency and is built to withstand extreme climates, providing a safe, 20-year reliable asset that is fully compatible with global power conversion systems and flexible augmentation plans.
Certified to
Basic parameters.
| Parameter | Value |
|---|---|
| Basic parameters | |
| Configuration | 8P416S |
| Rated energy | ~5.6 MWh |
| Cell capacity | ~530 Ah |
| Working ratio | ≤ 0.5P |
| Rated voltage | ~1331.2 V |
| Voltage range | 1040 V – 1500 V |
| IP level | IP55 |
| Product weight | ~45 T |
| Dimension (L×W×H) | 6058 × 2438 × 2896 mm |
Lower LCOS, safety and easy O&M.
-
Lower LCOS
Projected-area energy density of 385 kWh/m² (50% more than EnerC+). 38% reduction in land area compared to EnerC. High round-trip efficiency (~96%). Excellent life performance and 20-year reliability. Cell first-year degradation under 4%.
-
Safety measurements
Zero safety accidents in ESS product. Covers all extreme climates and scenes. Safety design at all levels. Early warning under various working conditions. Multiple fire-protection measures for different fire stages.
-
Convenient O&M
DC components pre-installed in the 20-foot cabinet. SOC precision enhanced by 3%. One-click commissioning, saving manpower. Compatible with overseas mainstream PCS, supporting different augmentation plans (3/5 years).
Discover more about EnerX.
Don't compromise on space or power. The liquid-cooled EnerX system delivers 385 kWh/m² with one-click commissioning. Speak with a YES-EU technical specialist today.
