YES-EU 180/2
Engineered for indoor and outdoor performance across the continent, this intelligent dual-gun station delivers massive energy output with the unique capability to scale its power as your fleet's demands expand.
-
Modular Upgradability
Starts with 180 kW total output but can be upgraded to a maximum capacity of 240 kW by adding internal power supply modules.
-
Universal High-Voltage Delivery
Supports an expansive 150–1000 VDC output range.
-
Efficient Dual-Charging
Equipped with two CCS2 charging cables.
-
Smart Fleet Control
Fully integrated with OCPP 1.6 (JSON) via 4G and Ethernet for real-time remote management, tracking, and power optimization across your networks.
-
All-Weather Durability
Housed in a heavy-duty, IP54-rated enclosure built to withstand demanding European climates ranging from -20°C to +50°C.

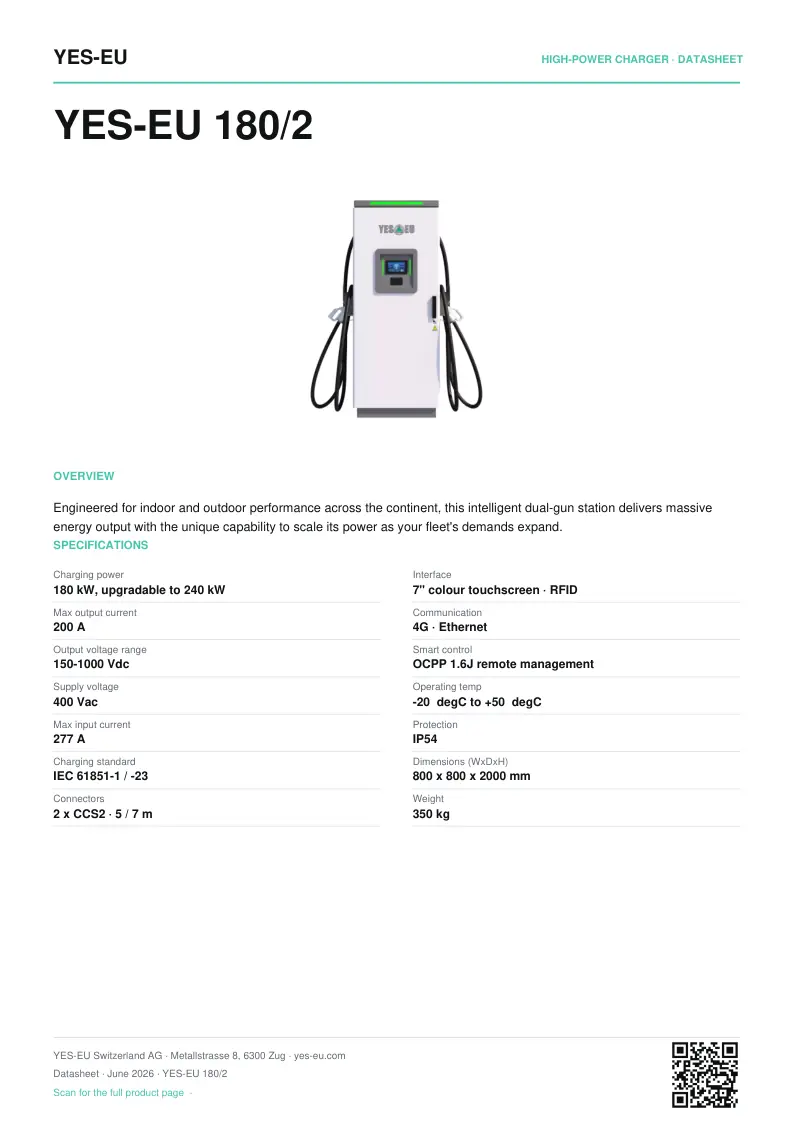

YES-EU 180/2 — full specification
| Specification | Value |
| Charging power | 180 kW, upgradable to 240 kW |
| Max output current | 200 A |
| Output voltage range | 150–1000 Vdc |
| Supply voltage | 400 Vac |
| Max input current | 277 A |
| Charging standard | IEC 61851-1 / -23 |
| Connectors | 2 × CCS2 · 5 / 7 m |
| Interface | 7" colour touchscreen · RFID |
| Communication | 4G · Ethernet |
| Smart control | OCPP 1.6J remote management |
| Operating temp | −20 °C to +50 °C |
| Protection | IP54 |
| Dimensions (W×D×H) | 800 × 800 × 2000 mm |
| Weight | 350 kg |
