2160/36 · Containerised
The YES-EU 2160/36 Containerized DC Charging System is the market’s most powerful depot solution. Delivering up to 2.16 Megawatts of energy, this centralized hub powers up to 48 heavy electric buses or commercial trucks at once, effectively eliminating depot gridlock and minimizing turnaround times.
-
Megawatt-Scale Generation
Delivers 1,080 to 2,160 kW of total charging power, providing the definitive infrastructure backbone for the most demanding European transit and commercial depots.
-
Simultaneous Charging
Intelligently distributes dynamic energy across up to 48 individual charging points to handle big fleets at scale.
-
Universal & Ultra-Fast Terminals
Supports highly flexible terminal configurations, including optional CCS2, CCS High Speed, and GB/T connectors, alongside a broad 200–1000 VDC output for all modern high-voltage architectures.
-
Climate Resilience
Housed in a heavy-duty 6,000 kg container with an IP54 rating, engineered to operate flawlessly outdoors in the harshest European winter conditions from -30°C to +50°C.

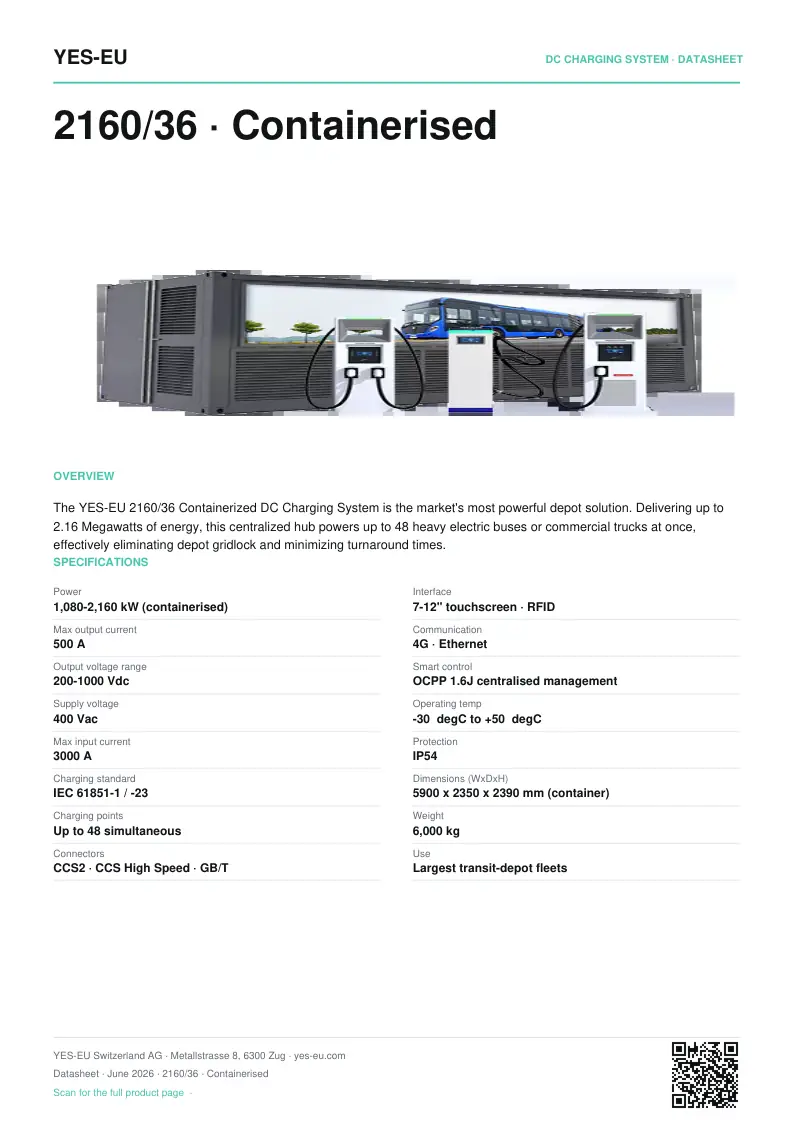

2160/36 · Containerised — full specification
| Specification | Value |
| Power | 1,080–2,160 kW (containerised) |
| Max output current | 500 A |
| Output voltage range | 200–1000 Vdc |
| Supply voltage | 400 Vac |
| Max input current | 3000 A |
| Charging standard | IEC 61851-1 / -23 |
| Charging points | Up to 48 simultaneous |
| Connectors | CCS2 · CCS High Speed · GB/T |
| Interface | 7–12" touchscreen · RFID |
| Communication | 4G · Ethernet |
| Smart control | OCPP 1.6J centralised management |
| Operating temp | −30 °C to +50 °C |
| Protection | IP54 |
| Dimensions (W×D×H) | 5900 × 2350 × 2390 mm (container) |
| Weight | 6,000 kg |
| Use | Largest transit-depot fleets |
