Matrix 720/12

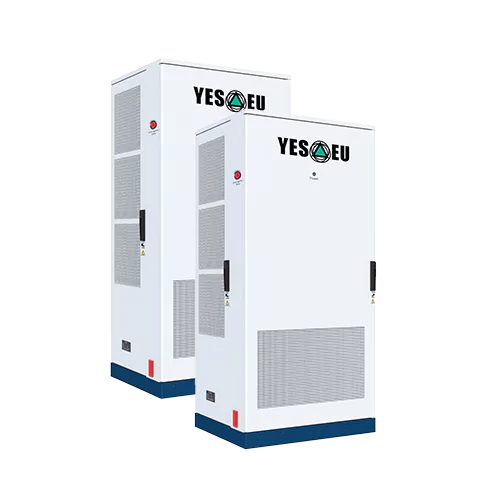

The YES-EU Matrix 720/12 is a highly flexible, high-capacity DC charging system engineered to efficiently serve mid-to-large-sized depots. By utilizing two massive 360/6 power supply units, it dynamically distributes energy across up to 12 charging points, ensuring growing European fleets are charged rapidly without overburdening local grid connections.

High-Capacity Power Generation

720 kW of total power via two linked 360/6 power supply units, with the unique flexibility to scale up to 1,080 kW by adding a third unit as your fleet expands.
Dynamic Multi-Point Routing

Distributes energy across 4 to 12 simultaneous charging terminals, fully supporting ultra-fast 300 kW CCS High Speed points for rapid vehicle turnarounds. Future-Proof 800V Capability: Provides a broad 150–1000 VDC output range, ensuring safe, seamless charging for standard EVs as well as next-generation 800 V high-capacity systems.
Extreme European Resilience

Housed in an IP54-rated heavy-duty enclosure, this system operates flawlessly indoors and outdoors through tough climates ranging from -20°C to +50°C.

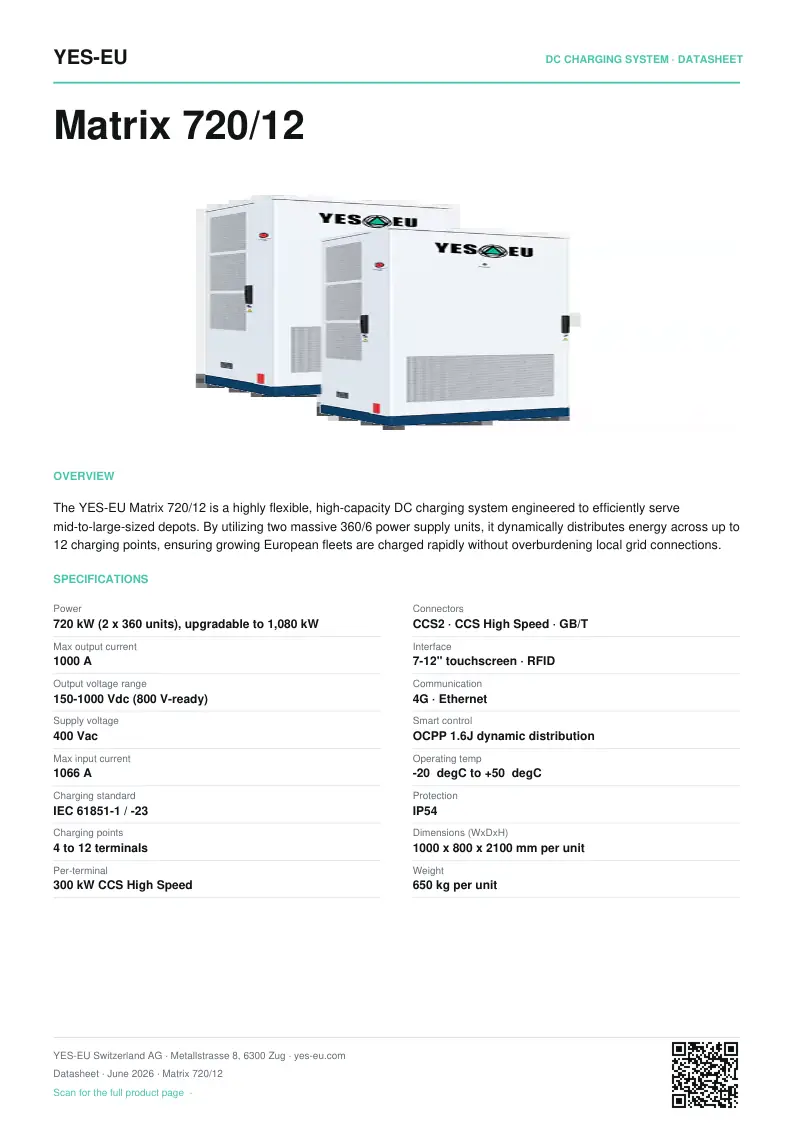

Matrix 720/12 — full specification

Specification	Value
Power	720 kW (2 × 360 units), upgradable to 1,080 kW
Max output current	1000 A
Output voltage range	150–1000 Vdc (800 V-ready)
Supply voltage	400 Vac
Max input current	1066 A
Charging standard	IEC 61851-1 / -23
Charging points	4 to 12 terminals
Per-terminal	300 kW CCS High Speed
Connectors	CCS2 · CCS High Speed · GB/T
Interface	7–12" touchscreen · RFID
Communication	4G · Ethernet
Smart control	OCPP 1.6J dynamic distribution
Operating temp	−20 °C to +50 °C
Protection	IP54
Dimensions (W×D×H)	1000 × 800 × 2100 mm per unit
Weight	650 kg per unit
