Charging Solutions

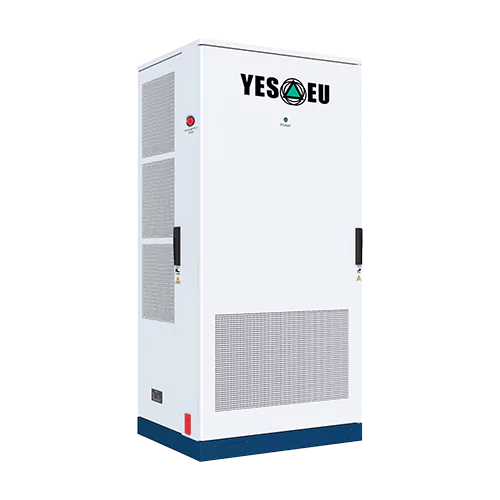

Matrix 360/6

The YES-EU Matrix 360/6 is a highly flexible DC charging system expertly engineered to serve multiple parking bays efficiently. Acting as a smart power hub, it distributes massive energy capacity, ensuring your growing fleet is charged rapidly without overburdening your facility's local grid connection.

Scalable Energy Generation

Starts with a highly robust 360 kW power unit, with the unique capacity to link up to three supply units to deliver a staggering 1,080 kW of total depot power as your fleet expands.
Dynamic Multi-Point Routing

Intelligently routes energy across two to six simultaneous charging points, fully supporting ultra-fast 300 kW CCS High Speed terminals for rapid turnaround times. Future-Proof 800V Capability: Provides a broad 150–1000 VDC output range, ensuring safe, seamless charging for standard EVs as well as next-generation 800 V high-capacity systems.
Extreme European Resilience

Housed in an IP54-rated heavy-duty enclosure, this system operates flawlessly indoors and outdoors through tough climates ranging from -20°C to +50°C.

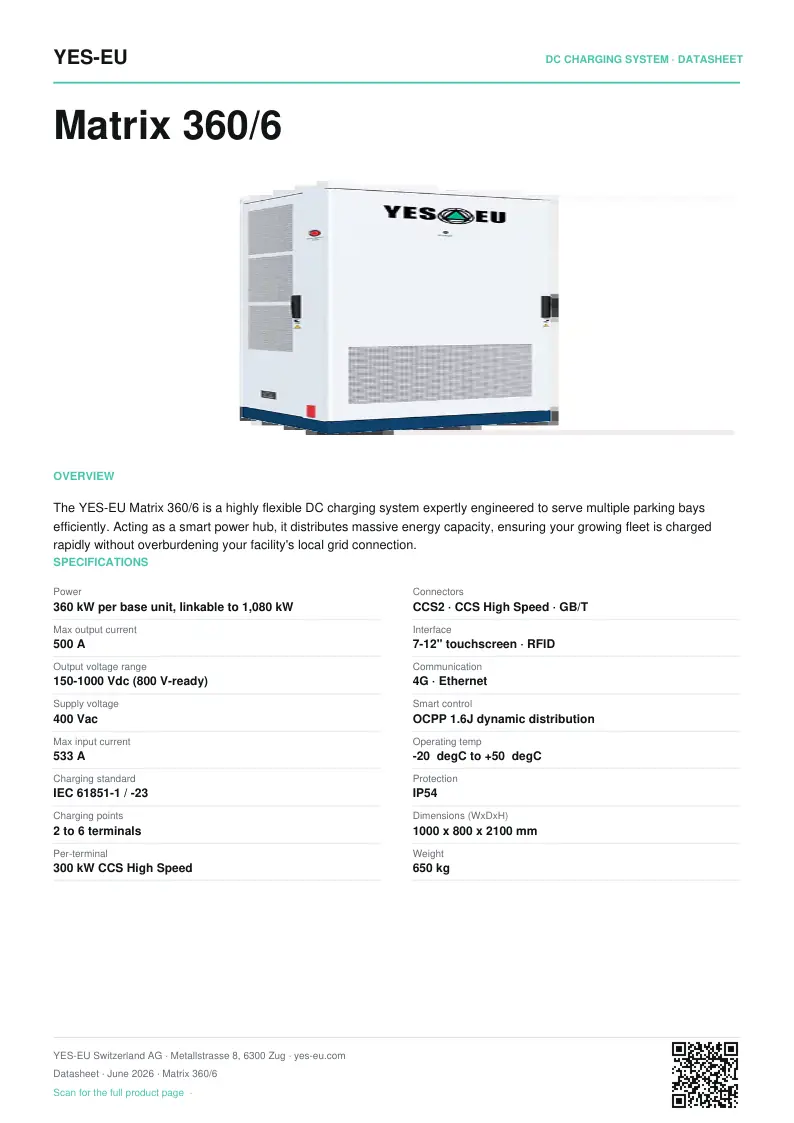

Matrix 360/6 — full specification

Specification	Value
Power	360 kW per base unit, linkable to 1,080 kW
Max output current	500 A
Output voltage range	150–1000 Vdc (800 V-ready)
Supply voltage	400 Vac
Max input current	533 A
Charging standard	IEC 61851-1 / -23
Charging points	2 to 6 terminals
Per-terminal	300 kW CCS High Speed
Connectors	CCS2 · CCS High Speed · GB/T
Interface	7–12" touchscreen · RFID
Communication	4G · Ethernet
Smart control	OCPP 1.6J dynamic distribution
Operating temp	−20 °C to +50 °C
Protection	IP54
Dimensions (W×D×H)	1000 × 800 × 2100 mm
Weight	650 kg
