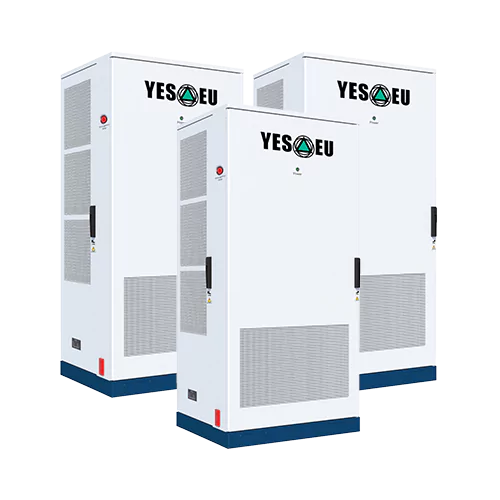

Matrix 1080/18
As major European logistics centers and public transit authorities scale their electric fleets, managing immense energy demand becomes a critical challenge. The YES-EU Matrix 1080/18 is the ultimate high-capacity DC charging system designed to meet this challenge head-on. Made for continuous, round-the-clock charging at full power, this centralized hub utilizes smart dynamic capacity distribution to manage up to 18 vehicles simultaneously, ensuring maximal fleet uptime.
-
Energy Generation
1,080 kW of total charging power.
-
Dynamic Routing
Features advanced dynamic capacity distribution that balances and directs power across 6 to 18 simultaneous charging points based on real-time vehicle demands.
-
Ultra-Fast & Future-Proof
Fully supports ultra-fast 300 kW CCS High Speed charging points and next-generation 800 V (150–1000 VDC) heavy-duty EV architectures.
-
Extreme Resilience
Housed in heavy-duty, IP54-rated enclosures, the power units operate indoors and outdoors through tough climates ranging from -20°C to +50°C.

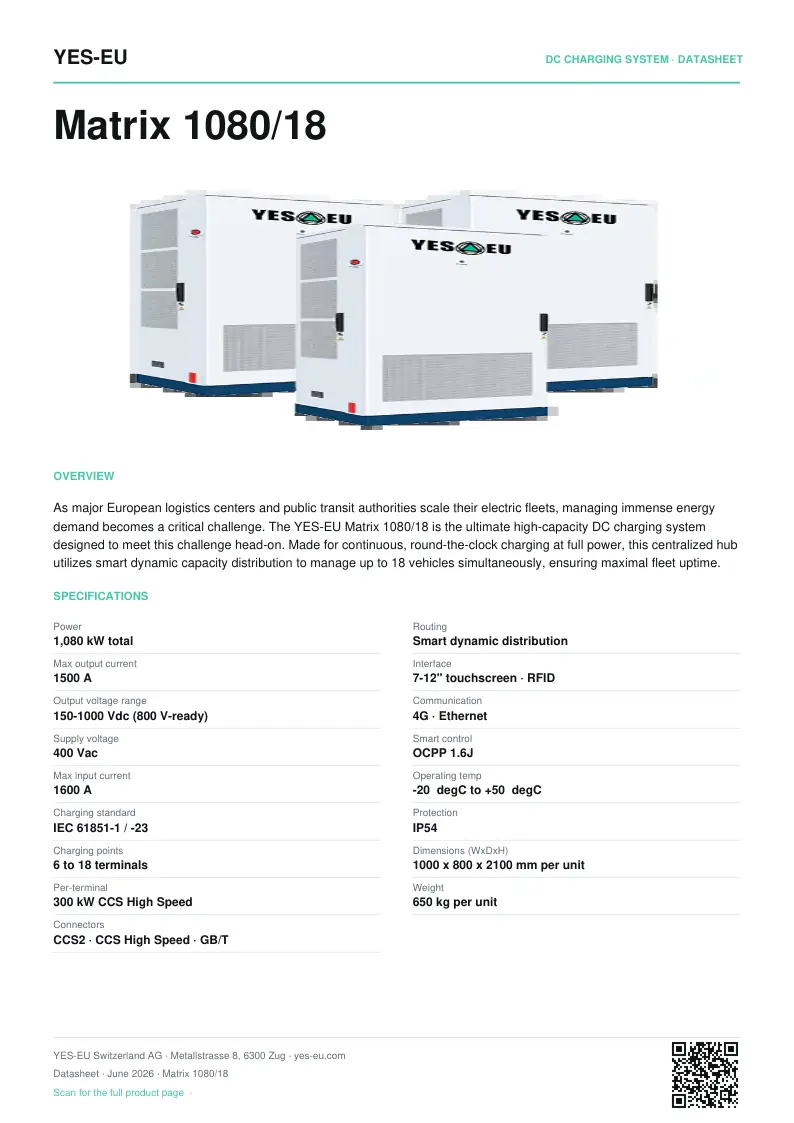

Matrix 1080/18 — full specification
| Specification | Value |
| Power | 1,080 kW total |
| Max output current | 1500 A |
| Output voltage range | 150–1000 Vdc (800 V-ready) |
| Supply voltage | 400 Vac |
| Max input current | 1600 A |
| Charging standard | IEC 61851-1 / -23 |
| Charging points | 6 to 18 terminals |
| Per-terminal | 300 kW CCS High Speed |
| Connectors | CCS2 · CCS High Speed · GB/T |
| Routing | Smart dynamic distribution |
| Interface | 7–12" touchscreen · RFID |
| Communication | 4G · Ethernet |
| Smart control | OCPP 1.6J |
| Operating temp | −20 °C to +50 °C |
| Protection | IP54 |
| Dimensions (W×D×H) | 1000 × 800 × 2100 mm per unit |
| Weight | 650 kg per unit |
